The photovoltaic power generation can either provide power for your pool pump house and outdoor energy requirements, or it can be connected into your household DV board. Photo: Algarve Solar Pool Heating Solutions
Last update: 03-01-2023 - Sponsored Content
Revolutionary award winning hybrid solar panel
DualSun Hybrid Panels is a hybrid solar panel that combines photovoltaic electricity generation on the front, and hot water production on the rear of the panel.
A three way valve & intelligent control manages the water circulation to heat the swimming pool, controlled via a panel in the pump house, or via a smart phone app.
The photovoltaic power generation can either provide power for your pool pump house and outdoor energy requirements, or it can be connected into your household DV board.
As PV generation works best when the panel is cold, in effect, the large capacity of the swimming pool acts as a reservoir to keep the photovoltaic front of the panels cool and operating optimally, increasing their PV generation by as much as 15%.
The ultra thin heat exchanger is integrated into the back of the panel, allowing heat transfer from the photovoltaic front side, to the water circulation on the rear side. Photo: Algarve Solar Pool Heating Solutions
Having a warm swimming pool, using free energy from the sun, is life changing and will have many positive effects for you & your family!
Benefits of installing DualSun Hybrid Panels
- Generate electricity while heating your swimming pool
- Maximise on available roof space – one panel two energies
- Increased PV power generation efficiency & solar panel life due to cooling
- Massively extended swimming season
- Significantly more swimming pool enjoyment
- Increased property value and rentability
- Once off installation cost
- Zero additional running costs – uses existing pool pumps to circulate the water
- No moving parts
- Takes filtered water so no chance of blockages
- Low maintenance – monthly visual check and annual service call
- Intelligent temperature control
- Completely silent

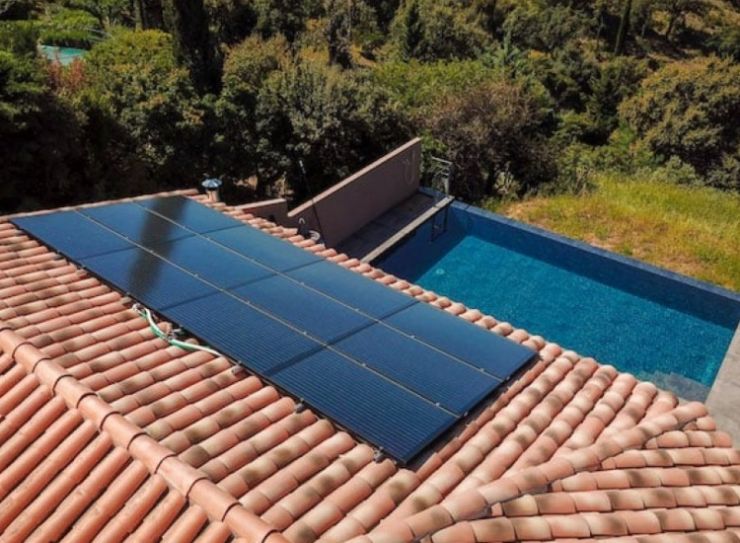

DualSun Hybrid Panels is a revolutionary, award winning hybrid solar that combines electricity generation on the front, and hot water production on the rear of the panel. Photo: Algarve Solar Pool Heating Solutions
Technical Info Photovoltaic
The 400 Wp, 360-cell, high-efficiency PERC mono-crystalline cell panel has standard panel dimensions of 1 646 mm x 1 140 mm x 35 mm. Cooled by water circulation on the rear side, the panels have a weight of 32 kg each, when full.
Thermal
The ultra thin heat exchanger is integrated into the back of the panel, allowing heat transfer from the photovoltaic front side, to the water circulation on the rear side.
The thermal-power module has a power of 660 W-thermal per square meter and a gross area of 1 876 m². Its heat-transfer liquid volume is 5 litres with a maximum operating pressure of 1,5 Bar.
Maximum temperature non-insulated 80°C, insulated 90°C. Solar Keymark and IEC Certified
Contact Algarve Solar Pool Heating for swift, friendly service & free advice.
